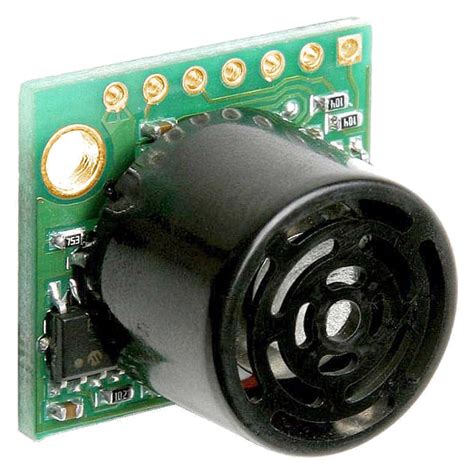

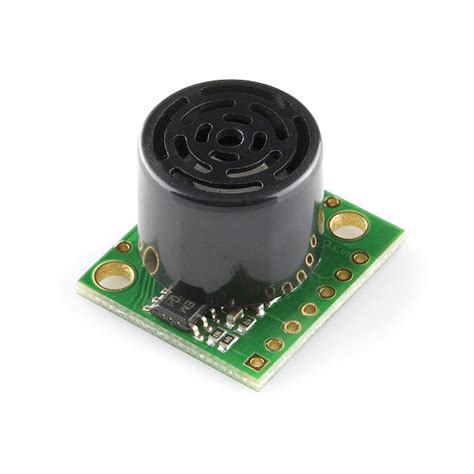

The LV-MaxSonar®-EZ1™ is a highly versatile and reliable ultrasonic range finder from MaxBotix, designed for a wide range of applications requiring accurate and consistent distance measurements. Operating with a low voltage input of 2.5V to 5.5V, this sensor provides excellent performance in both short and long-range detection scenarios. The LV-MaxSonar®-EZ1™ (also known as the MaxBotix MB1010) stands out as a robust solution for projects demanding precision, ease of integration, and low power consumption. This article provides an in-depth look at the LV-MaxSonar®-EZ1™, exploring its features, benefits, applications, and technical specifications, along with a comprehensive FAQ section to address common queries.

Introduction to Ultrasonic Range Finding

Before diving into the specifics of the LV-MaxSonar®-EZ1™, it's crucial to understand the basics of ultrasonic range finding. Ultrasonic sensors work by emitting a short burst of ultrasonic sound waves and then listening for the echo as these waves bounce off objects. The sensor measures the time it takes for the echo to return, and using the speed of sound, calculates the distance to the object. This technique is non-contact, meaning the sensor doesn't need to physically touch the object being measured. This makes ultrasonic sensors ideal for applications where physical contact is undesirable or impossible.

Ultrasonic range finders are widely used in various fields due to their advantages such as:

* Non-Contact Measurement: Eliminates the risk of damaging the object being measured or the sensor itself.

* Versatility: Works with a variety of materials, including liquids, solids, and granular substances.

* Cost-Effectiveness: Generally less expensive than other range-finding technologies like laser scanners.

* Durability: Can withstand harsh environments, including dust, dirt, and moisture (depending on the specific sensor).

The LV-MaxSonar®-EZ1™: A Detailed Overview

The LV-MaxSonar®-EZ1™ is part of MaxBotix's popular LV-MaxSonar®-EZ series, known for its reliability and ease of use. This sensor offers a combination of performance, low voltage operation, and a compact design, making it suitable for a broad spectrum of applications.

Key Features and Benefits:

* Low Voltage Operation (2.5V - 5.5V): The ability to operate at low voltages makes the LV-MaxSonar®-EZ1™ ideal for battery-powered applications and projects involving microcontrollers with limited voltage supplies. This also contributes to lower power consumption, extending battery life.lv maxsonar ez1

* High Accuracy and Resolution: The sensor provides accurate distance measurements with high resolution, ensuring reliable data for critical applications. The specific accuracy and resolution vary depending on the range and environmental conditions.

* Multiple Output Options: The LV-MaxSonar®-EZ1™ offers three different output options:

* Analog Voltage (AN): Provides an analog voltage output that is proportional to the measured distance. This is a simple and convenient way to interface with microcontrollers and other analog-based systems.

* RS232 Serial Output: Outputs distance readings in a serial data format, allowing for direct connection to computers and other serial communication devices.

* Pulse Width Modulation (PWM): Outputs a pulse with a width proportional to the measured distance. This output is easily read by microcontrollers and can be used to control actuators or other devices based on distance.

* Short to Long-Range Detection: The LV-MaxSonar®-EZ1™ excels at detecting objects at both very short and long distances. The maximum range typically extends to several meters, depending on the target size, shape, and reflectivity.

* Temperature Compensation: The sensor incorporates internal temperature compensation, which automatically adjusts the distance readings based on the ambient temperature. This ensures accurate measurements even in environments with fluctuating temperatures.

* Excellent Noise Rejection: The LV-MaxSonar®-EZ1™ is designed with robust noise rejection circuitry to minimize interference from electrical noise and other sources. This contributes to more reliable and stable distance readings.

* Easy to Use: The sensor is designed for easy integration into various projects. Its simple interface and clear documentation make it accessible to both beginners and experienced users.

* Compact Size: The small footprint of the LV-MaxSonar®-EZ1™ allows for easy integration into space-constrained applications.

* RoHS Compliant: The sensor is RoHS compliant, meaning it does not contain hazardous substances and is environmentally friendly.

Technical Specifications:

* Operating Voltage: 2.5V to 5.5V DC

* Operating Current: Typically around 2mA

* Range: Varies depending on the target size and reflectivity, typically up to 6.45 meters (254 inches) for large, flat targets.

* Resolution: 1-inch (2.54 cm)

* Output Options: Analog Voltage (AN), RS232 Serial, Pulse Width Modulation (PWM)

* Operating Temperature: -40°C to +70°C (-40°F to +158°F)

* Storage Temperature: -40°C to +85°C (-40°F to +185°F)
