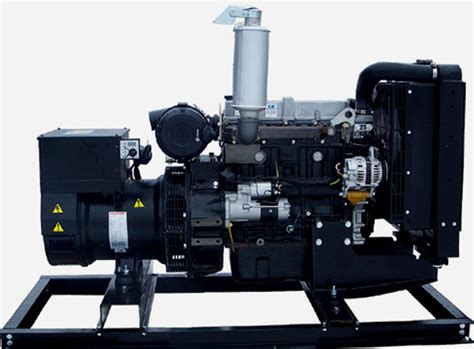

In the realm of power generation, the Low Voltage (LV) generator stands as a reliable and often overlooked workhorse. While Medium Voltage (MV) generators might seem like the obvious choice for higher power applications, the LV generator boasts several advantages, particularly in terms of reliability, simplicity, and cost-effectiveness. This article delves into the world of LV generators, exploring their strengths, limitations, and applications, and comparing them to their MV counterparts. We will also discuss specific models like Mitsubishi KU generators and provide insights into the market for LV generators for sale.

Understanding LV Generators: A Foundation of Reliability

An LV generator is defined as a generator that produces electricity at a low voltage level, typically ranging from 230V to 690V. This lower voltage has significant implications for the generator's design, operation, and reliability.

The Reliability Advantage: Corona and Switchgear Considerations

One of the key advantages of LV generators lies in their inherent reliability compared to MV generators. This advantage stems primarily from the absence of corona discharge issues and the simpler, more robust nature of associated LV switchgear.

* Corona Discharge: Corona discharge is a phenomenon that occurs when the electric field strength around a conductor exceeds the dielectric strength of the surrounding air. This leads to ionization of the air and the formation of a visible glow (corona). In MV generators, operating at higher voltages, the risk of corona discharge is significantly higher. Corona discharge can cause several problems, including:

* Insulation Degradation: The ionized air produced by corona discharge can react with the insulation materials of the generator windings, leading to gradual degradation and eventual failure.

* Ozone Production: Corona discharge produces ozone, which is a highly reactive gas that can further accelerate the degradation of insulation materials.

* Radio Frequency Interference (RFI): Corona discharge generates RFI, which can interfere with sensitive electronic equipment.

Since LV generators operate at lower voltages, the electric field strength is lower, and the risk of corona discharge is significantly reduced. This translates to a longer lifespan and reduced maintenance requirements.

* Simpler Switchgear: MV generators require sophisticated and expensive switchgear to protect the generator and the electrical system from faults. This switchgear is typically more complex and prone to failure than the simpler switchgear used with LV generators. The complexity arises from the need to interrupt higher fault currents and manage the higher voltage levels. LV switchgear, on the other hand, is generally more robust, easier to maintain, and less expensive.

Power Transfer Limitations and Mitigation Strategies

While LV generators offer superior reliability, they do have limitations, particularly when it comes to long-distance power transfer. The statement "It may not be possible to transfer power within 10..." likely refers to the voltage drop that occurs when transmitting power over longer distances at lower voltages. This voltage drop is proportional to the current and the resistance of the conductors.

* Voltage Drop: At a fixed power level, a lower voltage requires a higher current. This higher current, flowing through the resistance of the conductors, results in a significant voltage drop. If the voltage drop is too large, the equipment at the receiving end may not function properly.

The specific distance limitation depends on several factors, including:

* Conductor Size: Larger conductors have lower resistance and can therefore transmit power over longer distances with less voltage drop.

* Power Level: Higher power levels require higher currents and therefore result in a greater voltage drop.

* Acceptable Voltage Drop: The acceptable voltage drop depends on the sensitivity of the equipment being powered.

While transferring power over long distances at LV can be challenging, it is not always impossible. Several strategies can be employed to mitigate the voltage drop and extend the transmission distance:

* Using Larger Conductors: Increasing the size of the conductors significantly reduces their resistance and minimizes voltage drop. However, this can be expensive and may not be practical in all situations.

* Using Multiple Parallel Cables: Running multiple cables in parallel effectively increases the conductor size and reduces resistance.

* Employing Step-Up Transformers: In some cases, it may be feasible to use a step-up transformer near the LV generator to increase the voltage to a higher level for transmission and then use a step-down transformer at the receiving end to reduce the voltage back to the desired level. This approach essentially converts the LV transmission into an MV or HV transmission for the bulk of the distance.

* Optimizing Load Placement: Strategically placing loads closer to the generator can minimize the transmission distance and reduce voltage drop.

LV Generators: Applications Across Industries

LV generators find applications in a wide range of industries and settings, including:

* Residential Power Backup: Smaller LV generators are commonly used for backup power in residential settings, providing electricity during power outages.

* Commercial Buildings: LV generators are used in commercial buildings for emergency power, powering critical systems such as lighting, elevators, and HVAC equipment.

* Industrial Facilities: LV generators are used in industrial facilities for backup power, peak shaving, and cogeneration.

* Construction Sites: Portable LV generators are essential for powering tools and equipment on construction sites.lv generator

* Remote Locations: LV generators are used to provide electricity in remote locations where grid power is not available.

* Telecommunications: LV generators provide backup power for telecommunications equipment, ensuring uninterrupted service.
